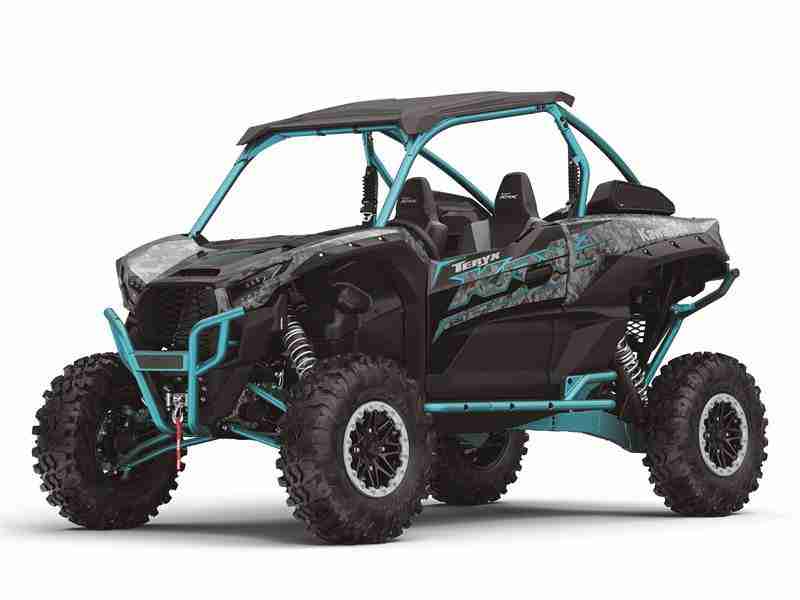

2023 KRX Trail Edition is the ultimate Kawasaki sport side by side, offering unmatched capability in challenging and technical off-road terrain, high performance, and Kawasaki-engineered durability from the ground up to provide the ultimate off-road experience.
KEY FEATURES
- COMPACT 999CC PARALLEL-TWIN ENGINE DELIVERS BOTH HIGH POWER AND ROBUST LOW-END TORQUE
- CVT WITH CENTRIFUGAL CLUTCH PROVIDES SMOOTH ACCELERATION AND AIDS IN PRECISE THROTTLE CONTROL
- LONG WHEELBASE AND LONG-TRAVEL SUSPENSION FEATURING FOX 2.5 PODIUM LSC SHOCKS COMBINE FOR EXCELLENT PERFORMANCE AND RIDE COMFORT
- ON-THE-FLY ELECTRICALLY SELECTABLE 4WD AND FRONT DIFFERENTIAL LOCK
- LARGE REAR CARGO AREA FOR UP TO A 32-INCH SPARE TIRE OR OTHER LARGE ITEMS
- ROOMY INTERIOR WITH ADJUSTABLE HIGH-BACKED BUCKET SEATS
- SPEED-SENSITIVE ELECTRIC POWER STEERING
2023 KRX Trail Edition SPECIFICATIONS
Engine Type Liquid-Cooled, 4-Stroke Parallel Twin, DOHC, 4-Valves per Cylinder
Displacement 999 cc
Bore & Stroke 92.0 x 75.1 mm
Maximum Torque 76.7 lb-ft @ 7,000 rpm
Compression Ratio 11:5:1
Fuel System DFI® with Two 50mm ETV Throttle Bodies
Transmission/Drive System CVT w/Centrifugal Clutch, Dual Range H/L/N/R, 2WD/4WD, Shaft Drive
Front Tire Type/Size Maxxis Carnivore 31 x 10.00R15 8PR, Bead-lock Wheels
Rear Tire Type/Size Maxxis Carnivore 31 x 10.00R15 8PR, Bead-lock Wheels
Wheelbase 98.8 in.
Front Brake Type 258mm Hydraulic Discs, 32mm Twin-piston Calipers
Rear Brake Type 258mm Hydraulic Discs, 38mm Single-piston Calipers
Front Suspension Type Double wishbone, FOX 2.5 PODIUM LSC shocks with piggyback reservoir,
fully adjustable preload, and 24-position adjustable compression damping
Rear Suspension Type 4-link trailing-arm, FOX 2.5 PODIUM LSC shocks with piggyback reservoir,
fully adjustable preload, and 24-position adjustable compression damping
w/Preload Adjustment, 24-Way Compression Damping Adjustment
Front Wheel Travel 18.6 in.
Rear Wheel Travel 21.1 in.
Ground Clearance (Std-Max Preload) 14.2-14.8 (ANFNN)/13.6-14.2 (BNFNN)/13.7-14.4 (CNFNN) in.
Fuel Tank Capacity 10.6 gal.
Track Front/Rear 59.3 in. / 59.4 in.
Length x Width x Height 130.1 x 68.1 x 75.0 in. (APFNN)
133.3 x 68.1 x 76.6 in. (BPFNN)
130.1 x 68.1 x 74.6 in. (CPFNN)
Bed Length x Width x Height 14.6 x 33.1 x 9.1
Bed Load Capacity 351 lb.
Curb Weight= 1,896.3 (APFNN)/2,019.8 (BPFNN)/1969.1 (CPFNN) lb.
Limited Warranty 6 months
Kawasaki Protection Plus™ 12, 24 or 36 months
2023 KRX Trail Edition EXCLUSIVE FEATURES
Bumpers and Nerf Bars[
Factory-installed Kawasaki Genuine Accessories front and rear bumpers and nerf bars provide
increased protection from trail obstacles while contributing to the KRX1000’s aggressive styling. The
bumpers and nerf bars are finished in a textured Pearl Neon Yellow powder coating to match other
Trail Edition highlights.
Sport Roof
Kawasaki KQR® Sport Roof helps shelter occupants from harsh
weather and sun and can easily be removed or installed without
tools. Pre-configured mounts allow up to six Kawasaki Genuine
Accessory LED Dome Lights to be added.
WARN® VRX 45 Powersport Winch
- Premium WARN® VRX 45 Powersport Winch fitted as standard equipment
- 50 feet of durable, aircraft-grade steel cable has a 4,500 lb. capacity
- Load-holding roller-disc brake offers great control, while a three-stage planetary gear train ensures smooth, efficient operation
- All-metal construction, complete waterproof sealing for the motor and drivetrain, and corrosion-resistant stainless steel fasteners contribute to superb durability and build quality
- Installation kit designed specifically for the KRX 1000 ensures a perfectly integrated fit
- Illuminated dash-mounted rocker control switch is complemented by a corded remote
Trail Edition Styling
Special colors with high-definition graphics set the Trail Edition
apart from its Teryx KRX1000 siblings
Standard Audio System
- A high-grade Hifonics audio system adds to the ride’s entertainment
- A pair of 6.5-inch coaxial 2-way waterproof speakers are built into the doors. Each has a composite construction midrange speaker for deep, accurate mid-bass complemented by a 0.75-inch titanium dome tweeter for clear high-frequency performance
- A 12-inch subwoofer[5] created specifically for the TERYX KRX 1000 is mounted behind the seats, where the heavy bass sound can be transmitted more directly to the occupants. Its rear cover lights up when the audio system is turned on
- Hifonics rear pod speakers can be purchased separately for an even greater sound experience
WARN® VRX 45 Powersport Winch
- Premium WARN® VRX 45 Powersport Winch fitted as standard equipment
- 50 feet of durable, aircraft-grade steel cable has a 4,500 lb. capacity
- • Load-holding roller-disc brake offers great control, while a three-stage planetary gear train ensures smooth, efficient operation
- All-metal construction, complete waterproof sealing for the motor and drivetrain, and corrosion-resistant stainless steel fasteners contribute to superb durability and build quality
- Installation kit designed specifically for the KRX 1000 ensures a perfectly integrated fit
- Illuminated dash-mounted rocker control switch is complemented by a corded remote
ABOUT KAWASAKI
Kawasaki started full-scale production of motorcycles over a half-century ago. The first Kawasaki motorcycle engine was designed based on technical know-how garnered from the development and production of aircraft engines, and Kawasaki’s entry into the motorcycle industry was driven by the company’s constant effort to develop new technologies. Numerous new Kawasaki models introduced over the years have helped shape the market, and in the process have created enduring legends based on their unique engineering, power, design, and riding pleasure. In the future, Kawasaki Motors, Ltd. is committed to maintaining and furthering these strengths which will surely give birth to new legends.
Kawasaki Motors Corp., U.S.A. (KMC) markets and distributes Kawasaki motorcycles, ATVs, side x sides, and JET SKI® watercraft through a network of approximately 1,100 independent retailers, with close to an additional 7,700 retailers specializing in general-purpose engines. KMC and its affiliates employ nearly 3,100 people in the United States, with approximately 260 of them located at KMC’s Foothill Ranch, California headquarters.
Kawasaki’s tagline, “Let the good times roll.®”, is recognized worldwide. The Kawasaki brand is synonymous with powerful, stylish, and category-leading vehicles. Information about Kawasaki’s complete line of Powersports products and Kawasaki affiliates can be found on the Internet at www.kawasaki.com
