VIPER V3 4500, 6000, and 9000 Compared: Bigger Is Not Always Better

Which VIPER V3 Winch Is Right for Your UTV? 4500 vs. 6000 vs. 9000

Most UTV owners do not need the biggest winch they can squeeze behind the bumper.

They need the strongest winch that fits their machine, works with their electrical system, and is rated for the recoveries they will face. A 9,000-pound rating may look reassuring, but that extra capacity comes with a larger body, more weight, different mounting hardware, and fitment questions that should be answered before ordering.

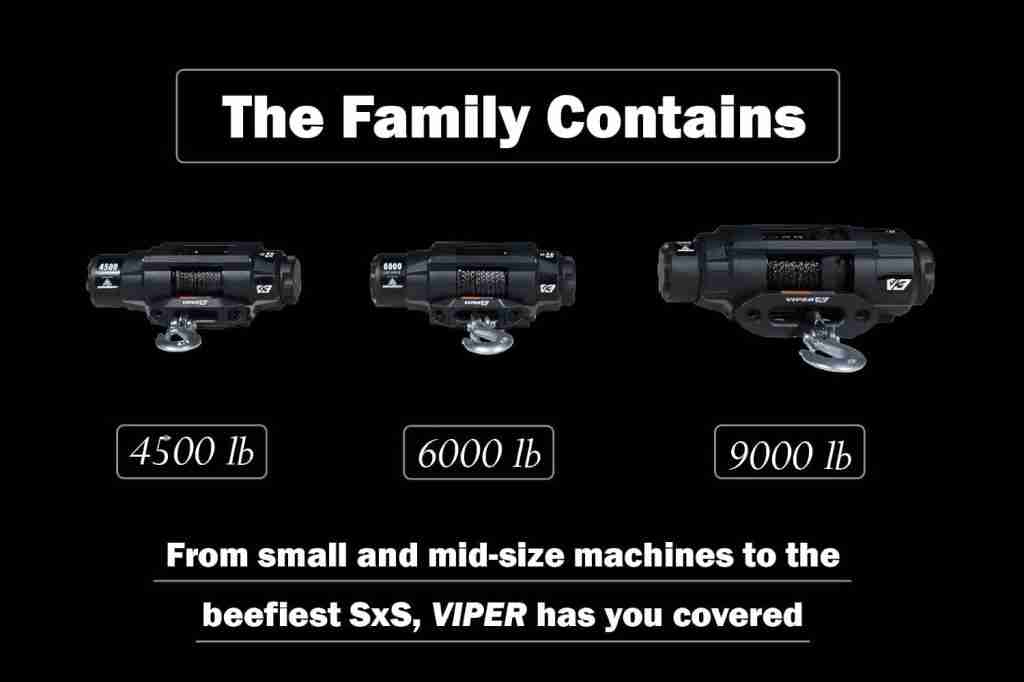

MotoAlliance’s VIPER V3 lineup gives riders four realistic choices: a 4,500-pound standard-spool winch, a 6,000-pound standard-spool model, a 6,000-pound wide-spool version, and a much larger 9,000-pound unit.

For most full-size side-by-sides, the standard VIPER V3 6000 is the best choice. The 4500 still makes sense for lighter machines and tight installations, while the wide-spool 6000 provides extra reach. The 9000 belongs on larger utility and expedition-style machines where the mount, charging system, and available space can support it.

The Quick Comparison

*Manufacturer-direct prices checked July 16, 2026. Amazon pricing and availability may differ.

**Some reseller documentation lists a different mounting pattern for the 9000. Confirm the measurement and mounting hardware before purchasing.

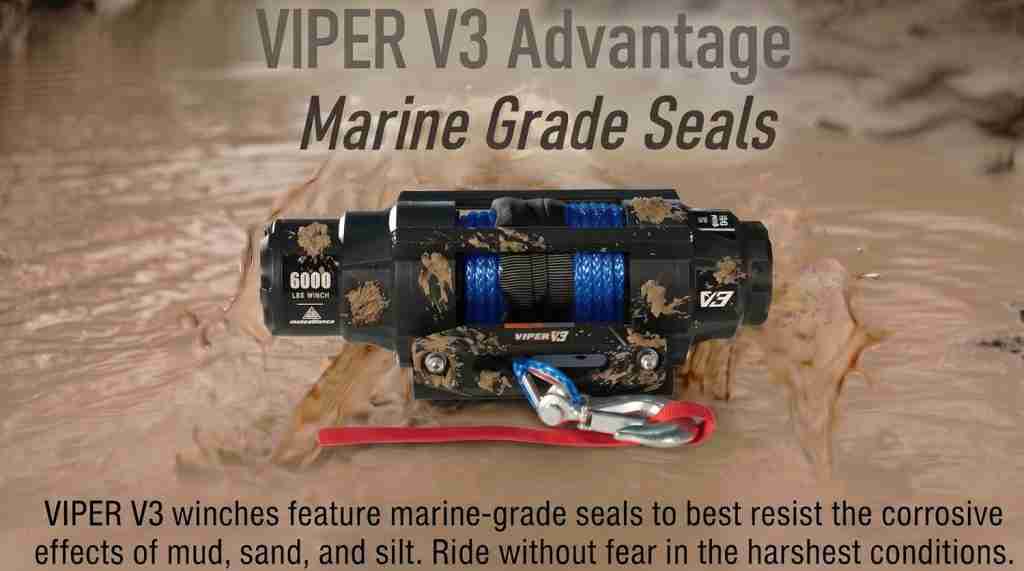

MotoAlliance lists IP67 protection, a wireless remote, an on-machine rocker switch, an aluminum hawse fairlead, a three-stage planetary geartrain, an automatic load-holding brake, six-gauge wiring, and a one-year limited winch warranty with six months of coverage on the rope across these V3 configurations. 4500: The Compact Choice

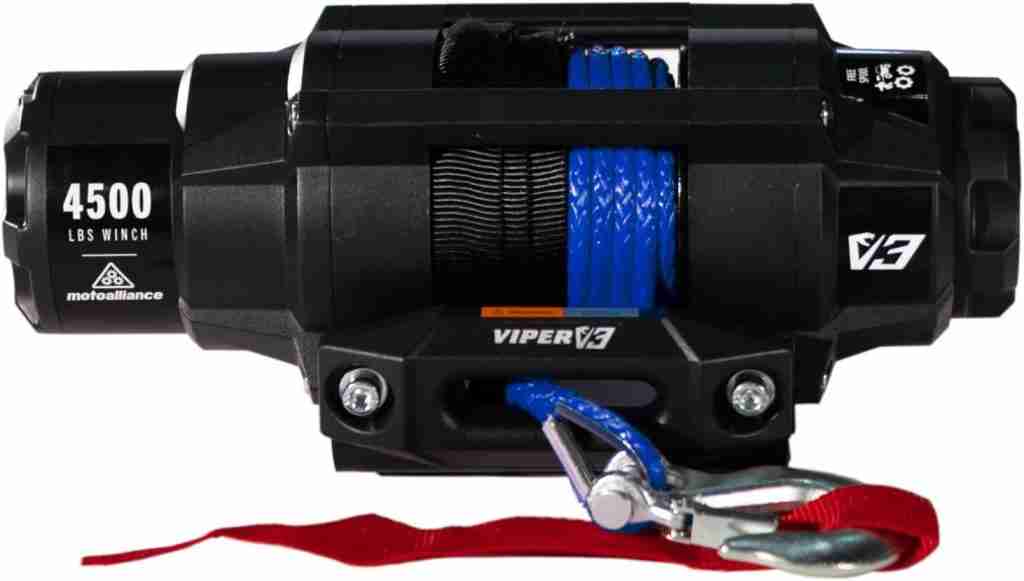

The VIPER V3 4500 is the smallest model in this comparison, but it is not a stripped-down economy winch.

MotoAlliance lists a 4,500-pound line-pull rating, 40 feet of 1/4-inch synthetic rope, a wireless remote, a rocker switch, an aluminum hawse fairlead, and an IP67 rating. Its mounting pattern is 3.0 by 4.875 inches, and the complete winch weighs 17 pounds. This makes the 4500 a logical fit for ATVs, youth or compact side-by-sides, and machines with restricted space behind the front bumper. It is also easier to justify when the winch will primarily handle lighter trail recoveries, property work, loading assistance, or occasional plowing.

The issue is not that the 4500 lacks useful capacity. The issue is how closely it is priced to the standard 6000.

At MotoAlliance’s listed prices on July 16, 2026, the 4500 was $379.99, and the standard 6000 was $404.99. That is a $25 difference for an extra 1,500 pounds of advertised line pull, with no increase in weight and almost no increase in size. The 4500 makes the most sense when fitment, intended use, or budget specifically points to it. It is not the automatic value winner just because it is the smallest model.

Best for: ATVs, compact UTVs, lighter machines, and installations where every inch matters.

VIPER V3 6000 Standard: The Best Overall Choice

The standard-spool VIPER V3 6000 hits the strongest balance in this lineup.

It has a 6,000-pound advertised line-pull rating, 40 feet of 1/4-inch synthetic rope, a 3.0-by-4.875-inch mounting pattern, a 13-inch-long body, and a listed weight of 17 pounds. MotoAlliance also gives it a 210:1 gear ratio, compared with 171:1 for the 4500. The 6000 stands out because it is not one flashy specification. It is the lack of a major penalty compared with the 4500.

The standard 6000 is slightly shorter according to MotoAlliance’s published dimensions, uses the same mounting pattern, weighs the same 17 pounds, and was listed only $25 higher. This makes it difficult to recommend the 4500 over the 6000 for a normal two- or four-seat UTV unless the manufacturer or mount supplier specifies otherwise. A winch also provides more margin when the machine is buried in mud, against an obstacle, below the anchor point, or carrying passengers and cargo. The number on the housing does not guarantee an easy recovery, but extra rated capacity gives the rider more options before using a snatch block or a second machine.

This is the model we would place at the top of the list for most trail riders, hunters, landowners, and recreational UTV owners.

That recommendation is based on specifications, fitment, and pricing—not a claim that SXS Nation has independently load-tested the winch.

Best for: Most full-size recreational and utility UTVs.

VIPER V3 6000 Wide Spool: Same Rating, More Reach

The wide-spool 6000 is not a more powerful version of the standard 6000. Its advantage is rope length.

MotoAlliance equips it with 60 feet of 1/4-inch synthetic rope instead of 40 feet. The extra rope matters when the nearest solid tree is farther away, the recovery angle requires a distant anchor, or the machine is stuck in an open mud hole without a nearby anchor. The tool changes the installation.

MotoAlliance lists a 3.0-by-6.6-inch mounting pattern, a 15-inch overall length, and an 18-pound weight. This makes it about two inches longer and one pound heavier than the standard 6000. The manufacturer-direct price was $55 higher. These differences are reasonable for riders who regularly use the extra reach but unnecessary for those with close anchor points or who carry a rated extension strap.

The wide-spool model is especially attractive for mud riders, hunters traveling through open ground, utility users working around fields, and anyone who frequently rides terrain with variable anchor locations.

It is not automatically the better 6000. It is better than the 6000 when an extra 20 feet of rope solves a real problem.

Best for: Open terrain, mud, awkward recovery positions and riders who prioritize reach.

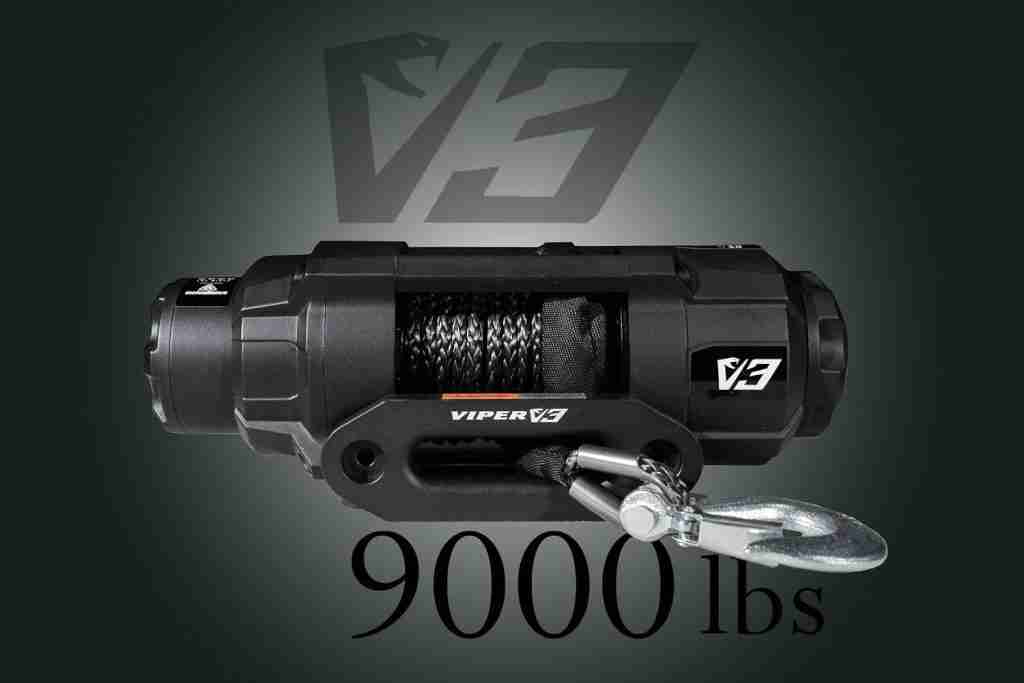

VIPER V3 9000: Serious Capacity With Serious Fitment Questions

The VIPER V3 9000 is not simply the standard 6000 with a stronger motor hidden inside the same housing.

MotoAlliance lists it as 17 inches long, six inches high, 5.75 inches deep, and 34 pounds. This makes it four inches longer and twice as heavy as the standard 6000. It uses 40 feet of 1/2-inch synthetic rope instead of the 1/4-inch rope on smaller models. MotoAlliance warns that the 9000 uses M10 mounting hardware instead of M8 and advises buyers to verify their mount and space can accommodate the larger winch. This must be taken seriously.

MotoAlliance’s current product page lists a 3.0-by-6.6-inch mounting pattern. However, some reseller listings for the same V39000_BK model show a 3.0-by-4.875-inch pattern and repeat the M10 hardware warning. This conflict is a reason to measure the machine and confirm fitment with the mount manufacturer or MotoAlliance before ordering. It suits large utility machines, enclosed-cab UTVs, expedition builds, heavily accessorized four-seaters, and machines used to move trailers, equipment, logs, or other heavy loads.

It may also be attractive to owners who regularly recover other machines rather than only their own.

However, the higher rating does not remove the need for a properly engineered mount, correctly sized wiring, a healthy battery, and a charging system that supports demanding winch use. A 34-pound winch and heavier mounting structure also add weight to the front of the machine.

For a normal sport UTV or lightly equipped trail machine, the 9000 may cause more installation difficulty than benefit. For a loaded utility or overland machine, it could be the most appropriate model.

Best for: Large utility UTVs, enclosed-cab machines, expedition builds and demanding recovery or work applications.

What All Four VIPER V3 Winches Include

MotoAlliance’s published packages are similar across the lineup. The company lists the following equipment:

Synthetic rope
Aluminum hawse fairlead
Wireless remote
On-machine rocker switch
Contactor and wiring
Clevis hook
Rubber line stopper
Hand-saver strap
Installation hardware and instructions

The V3 product pages also list an IP67 rating, automatic braking, a sliding-ring-gear clutch, stainless-steel hardware in multiple key locations, and six-gauge wiring. Warranty coverage is listed as one year for the winch and six months for the synthetic rope. Note that the included universal fairlead plate mounts directly only to a flat surface or to a machine already configured as winch-ready. Many UTVs will still require a vehicle-specific winch mount. That “universal plate included” means the winch will bolt directly to every bumper.

Standard Spool or Wide Spool?

The choice between the two 6000 models comes down to reach versus packaging.

Choose the standard spool when:

Your machine uses the common 3.0-by-4.875-inch mounting pattern.
Space behind the bumper is limited.
Forty feet of rope is enough for the terrain you ride.
You carry an extension strap for occasional long pulls.
You want the lowest-priced 6,000-pound V3.

Choose the wide spool when:

Anchor points are regularly more than 40 feet away.
You ride open mud, fields, dunes, or sparse wooded terrain.
Your mounting system accepts the longer 3.0-by-6.6-inch pattern.
The extra two inches of winch length will not interfere with the bumper, radiator, steering, suspension, or bodywork.
You would rather carry more rope on the drum than rely on an extension.

The wide spool provides a real advantage, but only when the rider can use the additional rope.

Fitment Comes Before Pulling Capacity

Before ordering any winch, check more than the machine’s curb weight.

Confirm:

The mounting bolt pattern.
The standard 4500 and 6000 use the smaller 3.0-by-4.875-inch pattern. MotoAlliance lists the wide-spool 6000 and the 9000 with a longer 3.0-by-6.6-inch pattern. The physical space.**
A mount may have the correct holes but still place the motor, terminals, clutch, rope or fairlead against another component.

Hardware size.
The 9000 uses M10 hardware rather than the M8 hardware associated with the smaller installation. al condition.**
Inspect the battery, charging system, terminals, grounds, and cable routing before expecting the winch to perform under a heavy load.

Fairlead and bumper compatibility.
The fairlead opening must align correctly with the drum and allow the rope to enter without rubbing against sharp edges.

Plow use.
Riders using synthetic rope with a snowplow should verify MotoAlliance’s current plow-pulley and warranty requirements for their exact setup.

Our Recommendation

For most SXS Nation readers, the VIPER V3 6000 standard spool is the strongest overall choice.

It delivers 1,500 pounds more advertised pulling capacity than the 4500 while preserving the same weight and compact mounting pattern. Its manufacturer-direct price was only $25 higher, making it the most balanced model for typical trail, hunting, family, or utility UTVs. Choose VIPER V3 4500 for an ATV, compact side-by-side, lighter use, or installations where smaller capacity is appropriate.

Choose the VIPER V3 6000 Wide Spool when the extra 20 feet of rope will regularly help you reach an anchor.

Choose the VIPER V3 9000 when you have a large or heavily loaded machine and have verified the mount, space, M10 hardware, and electrical requirements.

The right winch is not the model with the largest number on the housing. It is the one that fits correctly, provides enough recovery margin, and is ready to work when the trail stops cooperating.
